Doorking 1812 Manual

Features
Call waiting.
Call forwarding with time zone restrictions.
Unique double ring.
Built-in clock / calendar.
Do-not-disturb feature.
Four 'hold open' time zones.
Answer machine bypass feature.
50 5-digit entry codes with time zone restrictions on some codes.
10 Tempory entry codes with start and end dates.
Intercom mode for use with PBX and KSU phone systems.
Camera ready.
Connects directly to your existing C.O. (Central Office) phone line. No additional monthly expense for a separate telephone line to the entry system.
Digital voice circuit for cyrstal clear communication.
Unique double ring identifies calls from the 1812.
Two relays allow control of two doors or gates.
Answer machine bypass feature allows the homeowner to call the 1812 from an off site location and 'by-pass' a home answering machine to perform programming operations.
Built-in call waiting so calls from the access system are never missed - even if you're on the phone.
Call forwarding - never miss an access system call, even if you're away from your home. And you can even create a time zone for when you want your calls to be forwarded.
Dial-out function provides up to 27 alternate phone numbers for the system to call.
Do-not-disturb feature allows the homeowner to set times when the access system will not ring the house phones.
Program up to four 'hold-open' time zones to keep your door or gate open during certain times of the day.
Program up to 50 individual five (5) digit entry codes. You can even time zone restrict certain entry codes.
Program up to 10 temporary entry codes with start and end dates and time zone restrictions. Great for allowing service companies entry to your property.

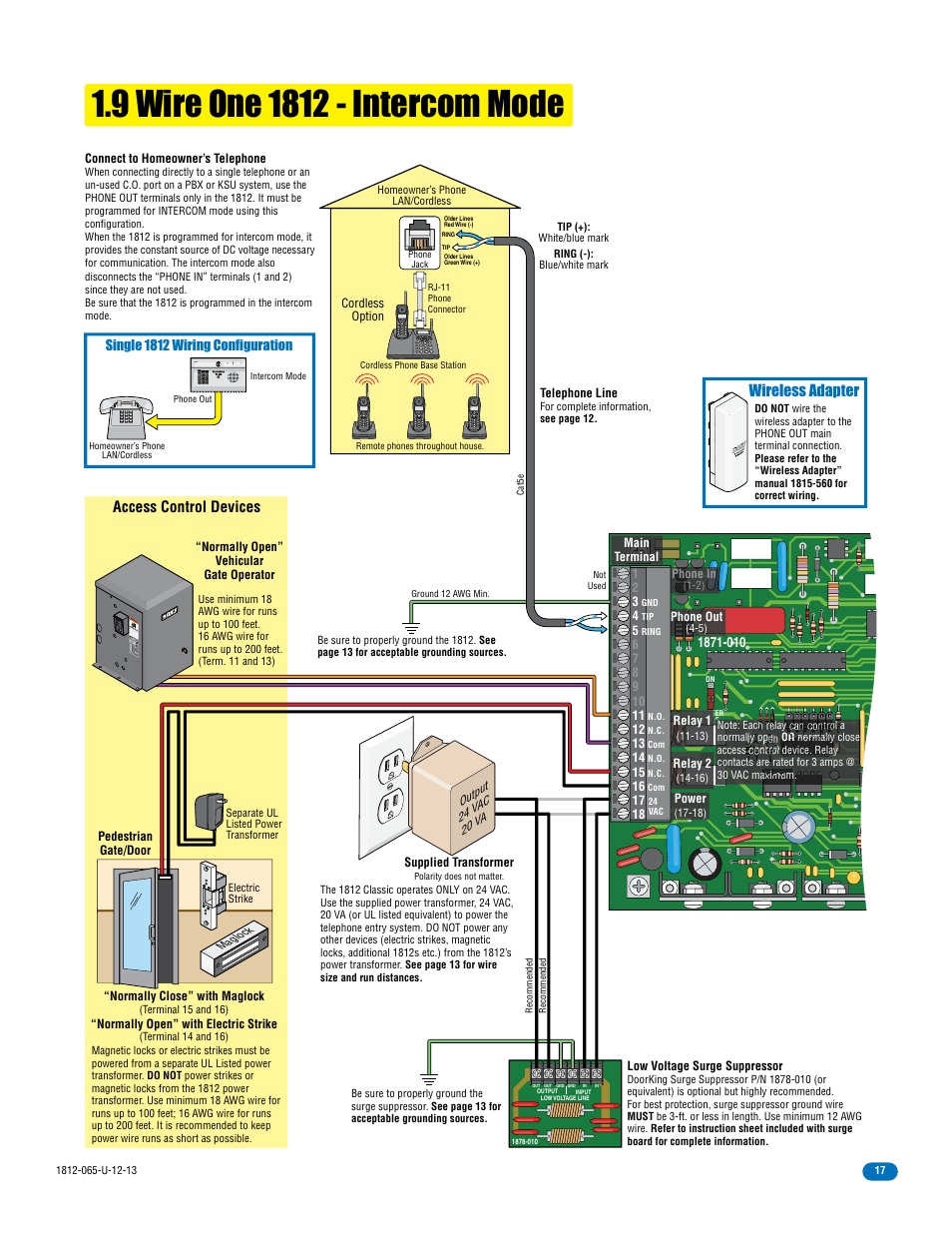

Special intercom programming mode allows the 1812 to be connected directly to a PBX or KSU phone system.

Directory Codes 2.3.1 Directory Codes 24 – 50 Dial Phone Number The 1812 has the capability of operating as an auto-dialer system and can store up to 27 phone numbers in its memory. When a visitor enters a directory code on the system keypad, the 1812 will call the phone number programmed under the specific directory code number. Doorking 1812-090 Telephone Entry System Elite Gates Liquid error: invalid integer Doorking 1812-090 Telephone Entry System – Elite Gates DKS 1812-090 Access Plus The 1812 Access Plus LAN capable includes all of the features found in the 1812 Plus and is designed for larger homes that require control of a main door or gate and up to six. The 1812 Plus is a unique communication and access control system that allows homeowners to use their existing telephone as an intercom to speak with a guest at a door or gate and is ideal for those applications requiring a basic, single door or gate, access control solution. Connects directly to your existing C.O. (Central Office) phone line. DoorKing 1812-005 Switch Push Button N.O. DoorKing 1812 Access Plus Surface Mount Telephone Entry / Intercom & Access Control System. Doorking-1812ap-manual, 2009-08 Rev C.pdf (574.07 KB) Product Brochures. Doorking-1812c-1812p-1812ap-brochure, 2018-04.pdf (510.09 KB) Additional Resources.

Doorking Programming Manual

Programming

Doorking Model 1812 Manual


Specifications
Hands free, full duplex digital audio circuit.
1812 Plus Capacity:
Interfaces with a single phone line
27 dial-out phone numbers
Two relays for door or gate control.
1812 Plus Programming Method: System keypad or touch-tone telephone.
16 VAC, 20 VA (250 ma) power transformer provided.
FCC (US): DUF6VT-12874-OT-0
DOC (CAN): 1736 4507 A
Complies with UL 294; ETL Listed.
Surface mount dimensions: 6.13'H x 10'W x 5.25'D.
